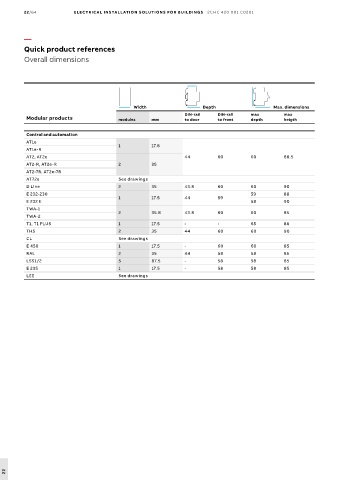

22/64 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201
—
Quick product references
Overall dimensions
Width Depth Max. dimensions
DIN-rail DIN-rail max max
Modular products modules mm to door to front depth heigth
Control and automation
AT1e
1 17.8
AT1e-R
AT2, AT2e 44 60 60 88.5
AT2-R, AT2e-R 2 35
AT2-7R, AT2e-7R
AT72e See drawings
D Line 2 35 43.8 60 60 90
E 232-230 59 88
1 17.5 44 59
E 232 E 58 90
TWA-1
2 35.8 43.8 60 60 85
TWA-2
T1, T1 PLUS 1 17.5 - - 65 86
THS 2 35 44 60 60 90
CL See drawings
E 450 1 17.5 - 60 60 85
RAL 2 35 44 58 58 85
LSS1/2 5 87.5 - 58 58 85
E 235 1 17.5 - 58 58 85
LEE See drawings
