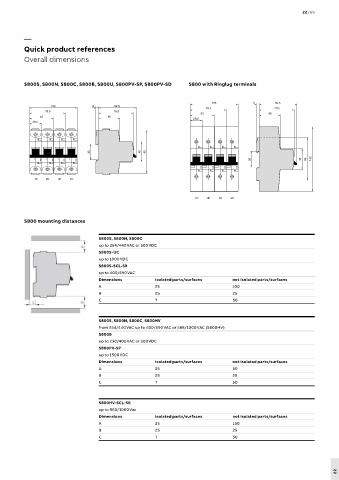

Quick product references
Overall dimensions

S800S, S800N, S800C, S800B, S800U, S800PV-SP, S800PV-SD S800 with Ringlug terminals

106 6 82.5
106 6 82.5
79.5 76.5
79.5 76.5
53 46
53 46
26.5
26.5

35 45 95
2CCC413010Z0001 35 45 95 142

2CCC413012Z0001
1P 2P 3P 4P

1P 2P 3P 4P

S800 mounting distances

S800S, S800N, S800C
up to 254/440 VAC or 500 VDC
S800S-UC
up to 1000 VDC
S800S-SCL-SR
up to 400/690 VAC
Dimensions isolated parts/surfaces not isolated parts/surfaces
A 25 100
B 25 25
C 7 50

S800S, S800N, S800C, S800HV
from 254/440 VAC up to 400/690 VAC or 588/1000 VAC (S800HV)
S800B
up to 230/400 VAC or 300 VDC
S800PV-SP
up to 1500 VDC
Dimensions isolated parts/surfaces not isolated parts/surfaces
A 25 50
B 25 25
C 7 50

S800HV-SCL-SR
up to 580/1000 Vac
Dimensions isolated parts/surfaces not isolated parts/surfaces
A 25 150
B 25 25
C 7 50

22
