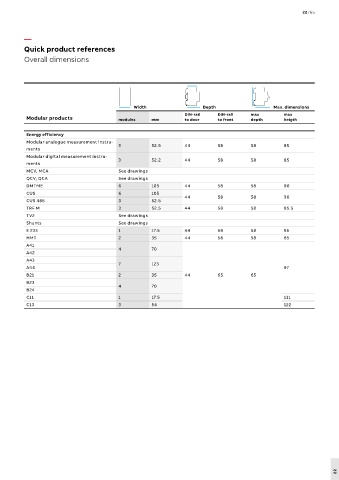

Quick product references
Overall dimensions
Width Depth Max. dimensions
DIN-rail DIN-rail max max
Modular products modules mm to door to front depth heigth
Energy efficiency
Modular analogue measurement instru-
3 52.5 44 58 58 85
ments
Modular digital measurement instru-
3 52.2 44 58 58 85
ments
MCV, MCA See drawings
QCV, QCA See drawings
DMTME 6 105 44 58 58 90
CUS 6 105
44 58 58 90
CUS 485 3 52.5
TRF M 3 52.5 44 58 58 85.5
TV2 See drawings
Shunts See drawings
E 233 1 17.5 44 58 58 85
HMT 2 35 44 58 58 85
A41
4 70
A42
A43
7 123
A44 97
B21 2 35 44 65 65
B23
4 70
B24
C11 1 17.5 111
C13 3 54 122
