P. 2963
22/67
—

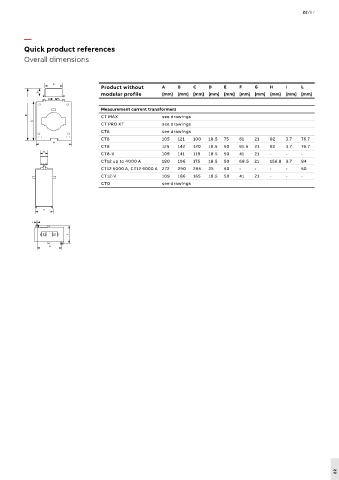

Quick product references
Overall dimensions
E
Product without A B C D E F G H I L
modular profile [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm]
D
Measurement current transformers
B
CT MAX see drawings
C
CT PRO XT see drawings
CTA see drawings
CT6 105 121 100 18.5 75 61 21 82 3.7 76.7
A
CT8 125 142 120 18.5 50 61.5 21 82 3.7 76.7
G
CT8-V 109 141 119 18.5 50 41 21 - - -
CT12 up to 4000 A 180 196 175 18.5 50 68.5 21 156.8 3.7 84
CT12 5000 A, CT12 6000 A 272 290 265 25 50 - - - - 50
CT12-V 109 186 165 18.5 50 41 21 - - -
CTO see drawings
F
I
L
H
22
