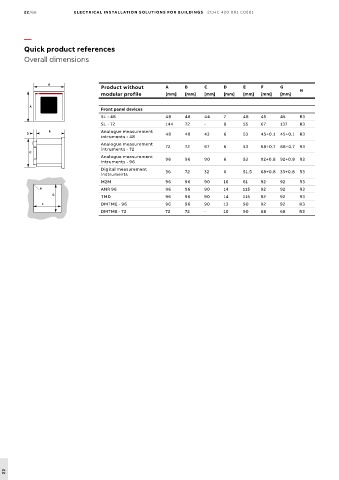

22/66 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Quick product references
Overall dimensions

B
Product without A B C D E F G
modular profile [mm] [mm] [mm] [mm] [mm] [mm] [mm] H

A
Front panel devices
SL - 48 48 48 44 7 48 45 45 R3
SL - 72 144 72 - 9 55 67 137 R3
E Analogue measurement
D 48 48 43 6 53 45÷0.1 45÷0.1 R3
intruments - 48
Analogue measurement
intruments - 72 72 72 67 6 53 68÷0.7 68÷0.7 R3
C
Analogue measurement
intruments - 96 96 96 90 6 53 92÷0.8 92÷0.8 R3
Digital measurement
instruments 36 72 32 6 51.5 68÷0.8 33÷0.8 R3
M2M 96 96 90 16 61 92 92 R3
H ANR 96 96 96 90 14 115 92 92 R3
G
TMD 96 96 90 14 115 92 92 R3
F DMTME - 96 96 96 90 13 90 92 92 R3
DMTME - 72 72 72 - 10 90 68 68 R3
