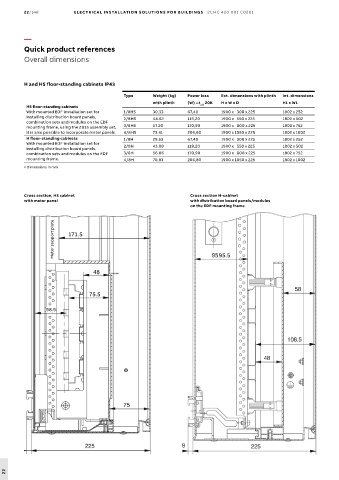

22/148 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Quick product references
Overall dimensions

H and HS floor-standing cabinets IP43
Type Weight (kg) Power loss Ext. dimensions with plinth Int. dimensions
with plinth (W) t 20K H x W x D H1 x W1
1,0
HS floor-standing cabinets
With mounted EDF installation set for 1/8HS 30.33 67,40 1900 x 300 x 225 1802 x 252
installing distribution board panels, 2/8HS 44.62 119,20 1900 x 550 x 225 1802 x 502
combination sets and modules on the EDF
mounting frame, using the ZB15 assembly set, 3/8HS 57.20 170,90 1900 x 800 x 225 1802 x 752
it is also possible to incorporate meter panels. 4/8HS 73.41 206,80 1900 x 1050 x 225 1802 x 1002
H floor-standing cabinets 1/8H 29.63 67,40 1900 x 300 x 225 1802 x 252
With mounted EDF installation set for
2/8H 43.88 119,20 1900 x 550 x 225 1802 x 502
installing distribution board panels,
combination sets and modules on the EDF 3/8H 56.06 170,90 1900 x 800 x 225 1802 x 752
mounting frame. 4/8H 70.83 206,80 1900 x 1050 x 225 1802 x 1002
> Dimensions in mm

Cross section, HS cabinet Cross section H-cabinet
with meter panel with distribution board panels/modules
on the EDF mounting frame

Meter support plate 171.5 95.5

75.5

58.5

22
