ABB | SACE Emax 2

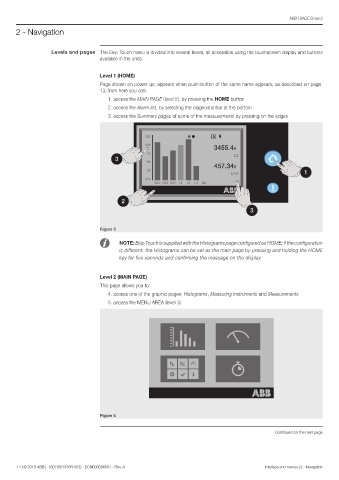

2 - Navigation

Levels and pages The Ekip Touch menu is divided into several levels, all accessible using the touchscreen display and buttons
available in the units:

Level 1 (HOME)
Page shown on power up; appears when push-button of the same name appears, as described on page
13; from here you can:
1. access the MAIN PAGE (level 2), by pressing the HOME button
2. access the Alarm list, by selecting the diagnostic bar at the bottom
3. access the Summary pages of some of the measurements by pressing on the edges

Figure 5
NOTE: Ekip Touch is supplied with the Histograms page configured as HOME; if the configuration
is different, the Histograms can be set as the main page by pressing and holding the HOME
key for five seconds and confirming the message on the display

Level 2 (MAIN PAGE)
This page allows you to:
4. access one of the graphic pages: Histograms, Measuring instruments and Measurements
5. access the MENU AREA (level 3)

Figure 6

Continued on the next page
