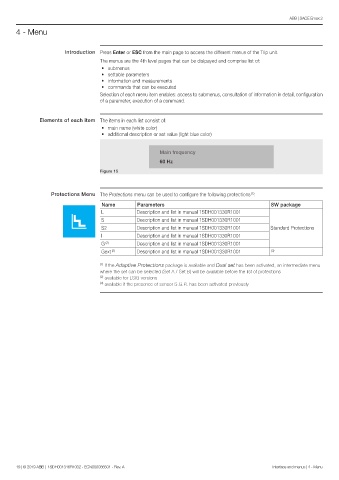

ABB | SACE Emax 2
4 - Menu

Introduction Press Enter or ESC from the main page to access the different menus of the Trip unit.
The menus are the 4th level pages that can be dislpayed and comprise list of:
• submenus
• settable parameters
• information and measurements
• commands that can be executed
Selection of each menu item enables: access to submenus, consultation of information in detail, configuration
of a parameter, execution of a command.

Elements of each item The items in each list consist of:
• main name (white color)
• additional description or set value (light blue color)

Figure 15

Protections Menu The Protections menu can be used to configure the following protections :
(1)
Name Parameters SW package
L Description and list in manual 1SDH001330R1001
S Description and list in manual 1SDH001330R1001
S2 Description and list in manual 1SDH001330R1001 Standard Protections
I Description and list in manual 1SDH001330R1001
G (2) Description and list in manual 1SDH001330R1001
Gext (2) Description and list in manual 1SDH001330R1001 (3)

(1) if the Adaptive Protections package is available and Dual set has been activated, an intermediate menu
where the set can be selected (Set A / Set B) will be available before the list of protections
(2) available for LSIG versions
(3) available if the presence of sensor S.G.R. has been activated previously

19 | © 2019 ABB | 1SDH001316R1002 - ECN000086501 - Rev. A Interface and menus | 4 - Menu
