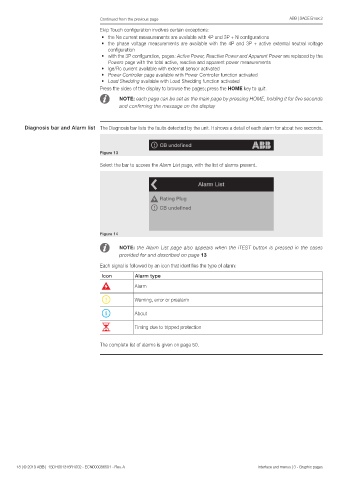

Continued from the previous page ABB | SACE Emax 2
Ekip Touch configuration involves certain exceptions:
• the Ne current measurements are available with 4P and 3P + N configurations
• the phase voltage measurements are available with the 4P and 3P + active external neutral voltage
configuration
• with the 3P configuration, pages: Active Power, Reactive Power and Apparent Power are replaced by the
Powers page with the total active, reactive and apparent power measurements
• Ige/Rc current available with external sensor activated
• Power Controller page available with Power Controller function activated
• Load Shedding available with Load Shedding function activated
Press the sides of the display to browse the pages; press the HOME key to quit.
NOTE: each page can be set as the main page by pressing HOME, holding it for five seconds
and confirming the message on the display

Diagnosis bar and Alarm list The Diagnosis bar lists the faults detected by the unit. It shows a detail of each alarm for about two seconds.

Figure 13

Select the bar to access the Alarm List page, with the list of alarms present.

Figure 14

NOTE: the Alarm List page also appears when the iTEST button is pressed in the cases
provided for and described on page 13

Each signal is followed by an icon that identifies the type of alarm:
Icon Alarm type
Alarm

Warning, error or prealarm

About

Timing due to tripped protection

The complete list of alarms is given on page 50.

18 | © 2019 ABB | 1SDH001316R1002 - ECN000086501 - Rev. A Interface and menus | 3 - Graphic pages
