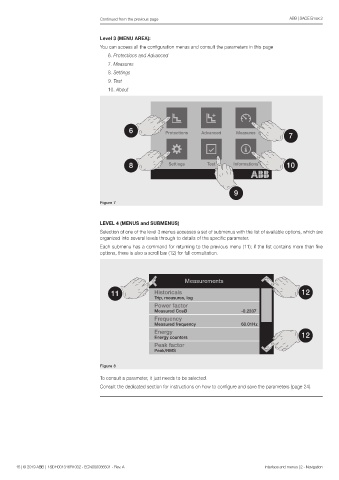

Continued from the previous page ABB | SACE Emax 2
Level 3 (MENU AREA):
You can access all the configuration menus and consult the parameters in this page
6. Protections and Advanced
7. Measures
8. Settings
9. Test
10. About
Figure 7
LEVEL 4 (MENUS and SUBMENUS)
Selection of one of the level 3 menus accesses a set of submenus with the list of available options, which are
organized into several levels through to details of the specific parameter.
Each submenu has a command for returning to the previous menu (11); if the list contains more than five
options, there is also a scroll bar (12) for full consultation.
Figure 8
To consult a parameter, it just needs to be selected.
Consult the dedicated section for instructions on how to configure and save the parameters (page 24).
15 | © 2019 ABB | 1SDH001316R1002 - ECN000086501 - Rev. A Interface and menus | 2 - Navigation
