ABB | SACE Emax 2

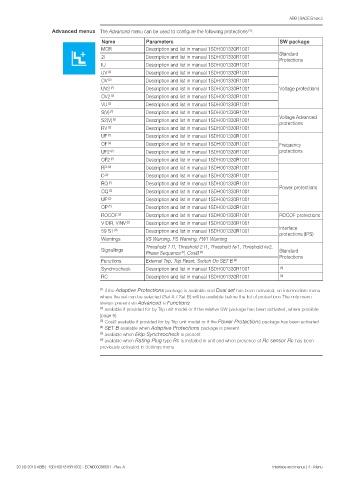

Advanced menus The Advanced menu can be used to configure the following protections :
(1)
Name Parameters SW package
MCR Description and list in manual 1SDH001330R1001
2I Description and list in manual 1SDH001330R1001 Standard
Protections
IU Description and list in manual 1SDH001330R1001
UV (2) Description and list in manual 1SDH001330R1001
OV (2) Description and list in manual 1SDH001330R1001
UV2 (2) Description and list in manual 1SDH001330R1001 Voltage protections
OV2 (2) Description and list in manual 1SDH001330R1001
VU (2) Description and list in manual 1SDH001330R1001
S(V) (2) Description and list in manual 1SDH001330R1001
S2(V) (2) Description and list in manual 1SDH001330R1001 Voltage Advanced
protections
RV (2) Description and list in manual 1SDH001330R1001
UF (2) Description and list in manual 1SDH001330R1001
OF (2) Description and list in manual 1SDH001330R1001 Frequency
UF2 (2) Description and list in manual 1SDH001330R1001 protections
OF2 (2) Description and list in manual 1SDH001330R1001
RP (2) Description and list in manual 1SDH001330R1001
D (2) Description and list in manual 1SDH001330R1001
RQ (2) Description and list in manual 1SDH001330R1001 Power protections
OQ (2) Description and list in manual 1SDH001330R1001
UP (2) Description and list in manual 1SDH001330R1001
OP (2) Description and list in manual 1SDH001330R1001
ROCOF (2) Description and list in manual 1SDH001330R1001 ROCOF protections
V DIR, VINV (2) Description and list in manual 1SDH001330R1001
59 S1 (2) Description and list in manual 1SDH001330R1001 Interface
protections (IPS)
Warnings VS Warning, FS Warning, FW1 Warning
Threshold 1 I1, Threshold 2 I1, Threshold Iw1, Threshold Iw2,
Signallings Standard
Phase Sequence , CosØ (3)
(2)
Functions External Trip, Trip Reset, Switch On SET B (4) Protections
Synchrocheck Description and list in manual 1SDH001330R1001 (5)
RC Description and list in manual 1SDH001330R1001 (6)

(1) if the Adaptive Protections package is available and Dual set has been activated, an intermediate menu
where the set can be selected (Set A / Set B) will be available before the list of protections The only menu
always present via Advanced is Functions
(2) available if provided for by Trip unit model or if the relative SW package has been activated, where possible
(page 6)
(3) CosØ available if provided for by Trip unit model or if the Power Protections package has been activated
(4) SET B available when Adaptive Protections package is present
(5) available when Ekip Synchrocheck is present
(6) available when Rating Plug type Rc is installed in unit and when presence of Rc sensor Rc has been
previously activated in Settings menu

20 | © 2019 ABB | 1SDH001316R1002 - ECN000086501 - Rev. A Interface and menus | 4 - Menu
