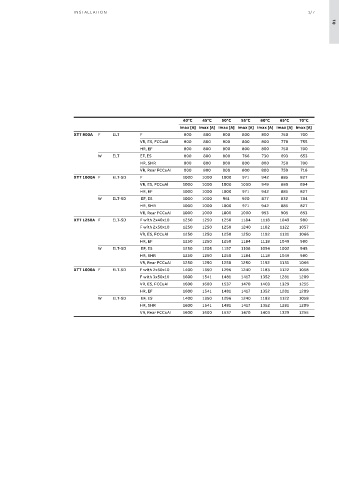

INSTALL ATION 1/7
01

40°C 45°C 50°C 55°C 60°C 65°C 70°C
Imax [A] Imax [A] Imax [A] Imax [A] Imax [A] Imax [A] Imax [A]
XT7 800A F ELT F 800 800 800 800 800 750 700
VR, ES, FCCuAl 800 800 800 800 800 778 755
HR, EF 800 800 800 800 800 750 700
W ELT EF, ES 800 800 800 766 730 693 653
HR, SHR 800 800 800 800 800 750 700
VR, Rear FCCuAl 800 800 800 800 800 759 716
XT7 1000A F ELT-SD F 1000 1000 1000 971 942 885 827
VR, ES, FCCuAl 1000 1000 1000 1000 949 885 894
HR, EF 1000 1000 1000 971 942 885 827
W ELT-SD EF, ES 1000 1000 961 920 877 832 784
HR, SHR 1000 1000 1000 971 942 885 827
VR, Rear FCCuAl 1000 1000 1000 1000 953 905 853
XT7 1250A F ELT-SD F with 2x40x10 1250 1250 1250 1184 1118 1049 980
F with 2x50x10 1250 1250 1250 1240 1182 1122 1057
VR, ES, FCCuAl 1250 1250 1250 1250 1192 1131 1066
HR, EF 1250 1250 1250 1184 1118 1049 980
W ELT-SD EF, ES 1250 1205 1157 1108 1056 1002 945
HR, SHR 1250 1250 1250 1184 1118 1049 980
VR, Rear FCCuAl 1250 1250 1250 1250 1192 1131 1066
XT7 1600A F ELT-SD F with 2x50x10 1400 1350 1296 1240 1183 1122 1058
F with 3x50x10 1600 1541 1481 1417 1352 1281 1209
VR, ES, FCCuAl 1600 1600 1537 1470 1403 1329 1255
HR, EF 1600 1541 1481 1417 1352 1281 1209
W ELT-SD EF, ES 1400 1350 1296 1240 1183 1122 1058
HR, SHR 1600 1541 1481 1417 1352 1281 1209
VR, Rear FCCuAl 1600 1600 1537 1470 1403 1329 1255
