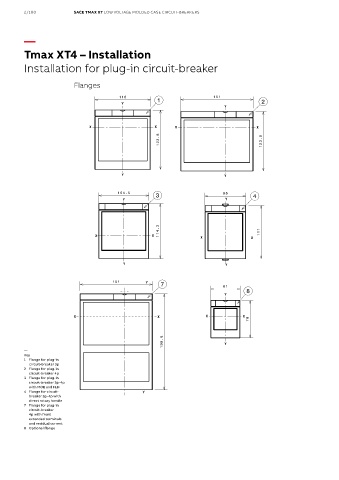

Tmax XT4 – Installation

Installation for plug-in circuit-breaker

Flanges

—
Key
1 Flange for plug-in
circuit-breaker 3p
2 Flange for plug-in
circuit-breaker 4p
3 Flange for plug-in
circuit-breaker 3p-4p
with MOE and FLD
4 Flange for circuit-
breaker 3p-4p with
direct rotary handle
7 Flange for plug-in
circuit-breaker
4p with front
extended terminals
and residual current
8 Optional flange
