Page 177 - SACE Tmax XT - Technical Catalogue

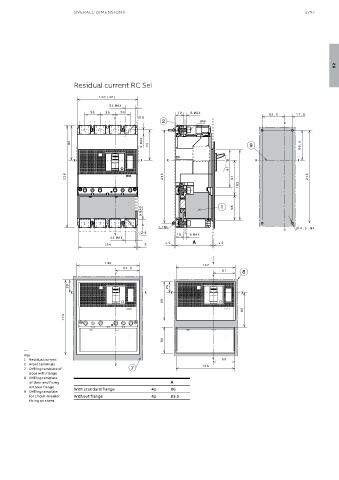

OVER ALL DIMENSIONS 2/97

02

Residual current RC Sel

—
Key
1 Residual current
2 Front terminals
7 Drilling template of
door with flange
8 Drilling template
of door and fixing A
without flange
9 Drilling template With standard flange 4p 86
for circuit-breaker Without flange 4p 83.5
fixing on sheet
