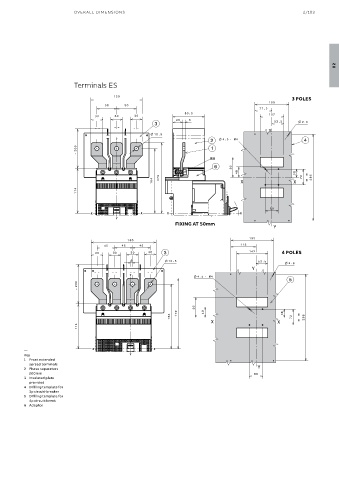

OVER ALL DIMENSIONS                                                             2/103










                                                                                                                       02


                           Terminals ES

                                                                                                        3 POLES

























                                                               FIXING AT 50mm





                                                                                                    4 POLES



















          —
          Key
          1  Front extended
           spread terminals
          2  Phase separators
           200mm
          3  Insulated plate
           provided
          4   Drilling template for
           3p circuit-breaker
          5   Drilling template for
           4p circuit-break
          6  Adaptor
