OVER ALL DIMENSIONS 2/101
02

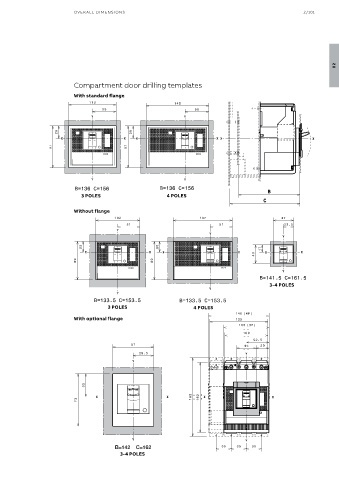

Compartment door drilling templates
With standard flange
3 POLES 4 POLES
Without flange
3-4 POLES
3 POLES 4 POLES
With optional flange
B=142 C=162
3 - 4 POLI
3-4 POLES
