Page 175 - SACE Tmax XT - Technical Catalogue
P. 175

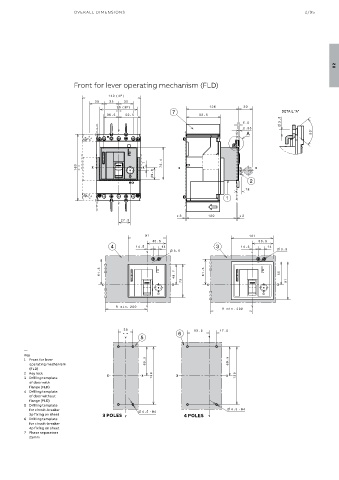

OVER ALL DIMENSIONS 2/95
02
Front for lever operating mechanism (FLD)
DETAIL "A"
—
Key
1 Front for lever
operating mechanism
(FLD)
2 Key lock
3 Drilling template
of door with
flange (FLD)
4 Drilling template
of door without
flange (FLD)
5 Drilling template
for circuit-breaker
3p fixing on sheet 3 POLES 4 POLES
6 Drilling template
for circuit-breaker
4p fixing on sheet
7 Phase separators
25mm
