2/106            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

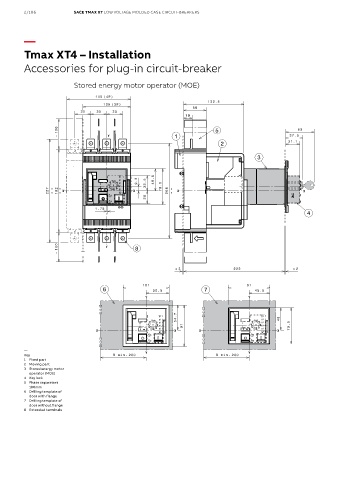

          Tmax XT4 – Installation


          Accessories for plug-in circuit-breaker


                           Stored energy motor operator (MOE)
























































          —
          Key
          1  Fixed part
          2  Moving part
          3  Stored energy motor
           operator (MOE)
          4  Key lock
          5  Phase separators
           100mm
          6  Drilling template of
           door with flange
          7  Drilling template of
           door without flange
          8  Extended terminals
