OVER ALL DIMENSIONS 2/169
02

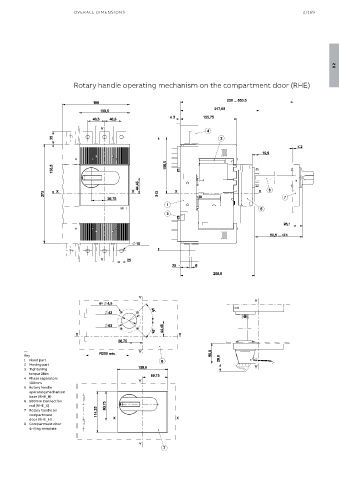

Rotary handle operating mechanism on the compartment door (RHE)
—
Key
1 Fixed part
2 Moving part
3 Tightening
torque 2Nm
4 Phase separators
100mm
5 Rotary handle
operating mechanism
base (RHE_B)
6 500mm Connection
rod (RHE_S)
7 Rotary handle on
compartment
door (RHE_H)
8 Compartment door
drilling template
