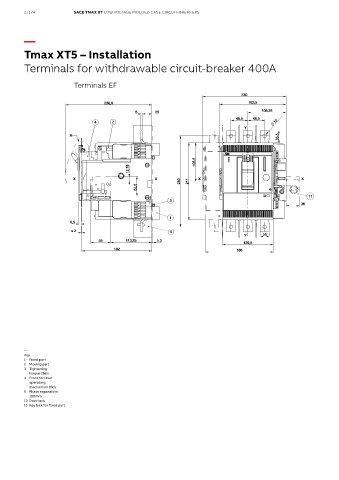

2/174            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

          Tmax XT5 – Installation


          Terminals for withdrawable circuit-breaker 400A


                           Terminals EF
























































          —
          Key
          1   Fixed part
          2   Moving part
          3   Tightening
           torque 2Nm
          4   Front for lever
           operating
           mechanism (fld)
          5   Phase separators
           100mm
          10  Door lock
          11  Key lock for fixed part
