2/172            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

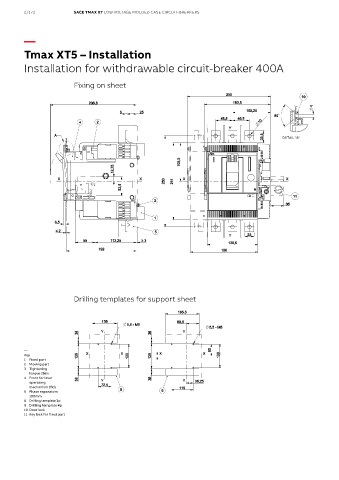

          Tmax XT5 – Installation


          Installation for withdrawable circuit-breaker 400A


                           Fixing on sheet










                                                                                                    DETAIL "A"

































                           Drilling templates for support sheet









          —
          Key
          1   Fixed part
          2   Moving part
          3   Tightening
           torque 2Nm
          4   Front for lever
           operating
           mechanism (fld)
          5   Phase separators
           100mm
          8   Drilling template 3p
          9   Drilling template 4p
          10  Door lock
          11  Key lock for fixed part
