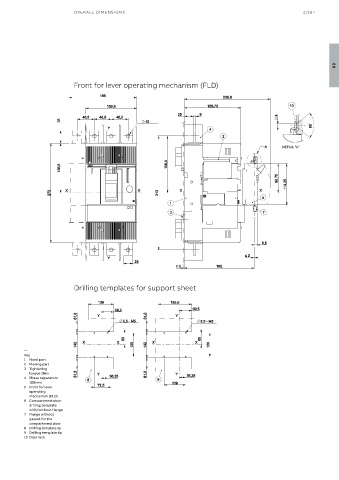

OVER ALL DIMENSIONS 2/167
02
Front for lever operating mechanism (FLD)
DETAIL "A"
Drilling templates for support sheet
—
Key
1 Fixed part
2 Moving part
3 Tightening
torque 2Nm
4 Phase separators
100mm
5 Front for lever
operating
mechanism (FLD)
6 Compartment door
drilling template
with/without flange
7 Flange without
gasket for the
compartment door
8 Drilling template 3p
9 Drilling template 4p
10 Door lock
