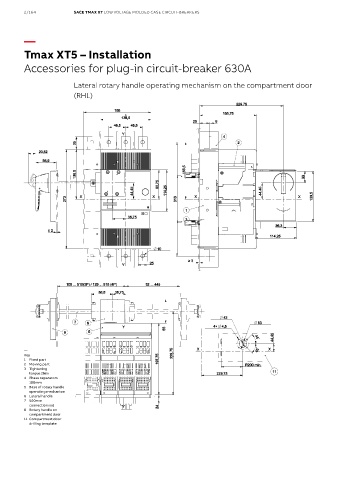

Tmax XT5 – Installation

Accessories for plug-in circuit-breaker 630A

Lateral rotary handle operating mechanism on the compartment door
(RHL)

—
Key
1 Fixed part
2 Moving part
3 Tightening
torque 2Nm
4 Phase separators
100mm
5 Base of rotary handle
operating mechanism
6 Lateral handle
7 500mm
connection rod
8 Rotary handle on
compartment door
11 Compartment door
drilling template
