OVER ALL DIMENSIONS                                                             2/185



          —

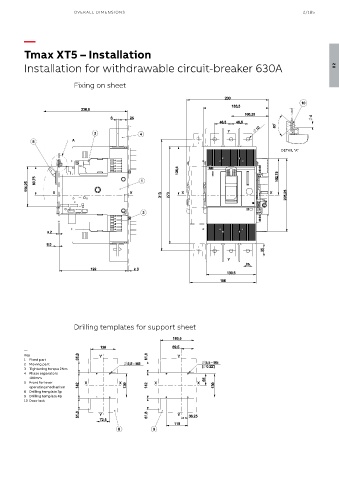

          Tmax XT5 – Installation


          Installation for withdrawable circuit-breaker 630A                                                           02


                           Fixing on sheet












                                                                                                    DETAIL "A"





































                           Drilling templates for support sheet



          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening torque 2Nm
          4  Phase separators
           100mm
          5  Front for lever
           operating mechanism
          8  Drilling template 3p
          9  Drilling template 4p
          10  Door lock
