OVER ALL DIMENSIONS                                                              2/181










                                                                                                                       02

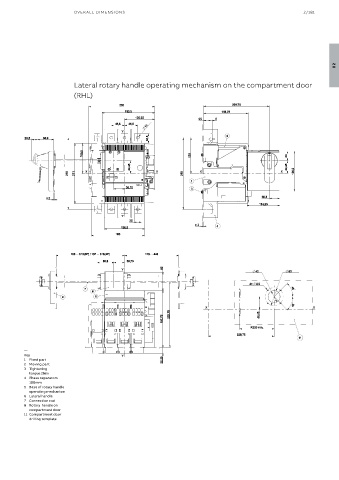

                           Lateral rotary handle operating mechanism on the compartment door
                           (RHL)






















































          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Phase separators
           100mm
          5  Base of rotary handle
           operating mechanism
          6  Lateral handle
          7  Connection rod
          8  Rotary  handle on
           compartment door
          11  Compartment door
           drilling template
