2/182            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

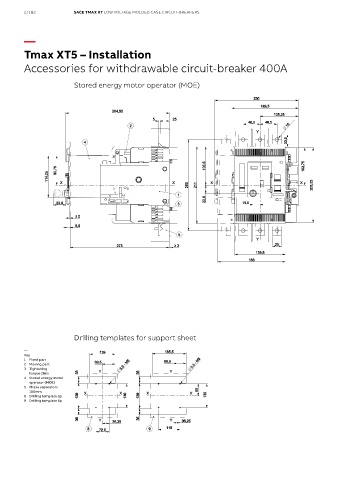

          Tmax XT5 – Installation


          Accessories for withdrawable circuit-breaker 400A


                           Stored energy motor operator (MOE)





















































                           Drilling templates for support sheet

          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Stored energy motor
           operator (MOE)
          5  Phase separators
           100mm
          8  Drilling template 3p
          9  Drilling template 4p
