OVER ALL DIMENSIONS                                                              2/187



          —

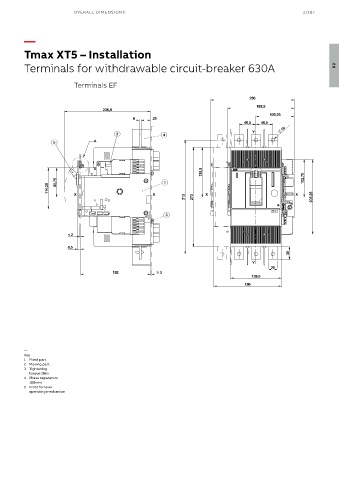

          Tmax XT5 – Installation


          Terminals for withdrawable circuit-breaker 630A                                                              02


                           Terminals EF
























































          —
          Key
          1  Fixed part
          2  Moving part
          3  Tightening
           torque 2Nm
          4  Phase separators
           100mm
          5  Front for lever
           operating mechanism
