2/186            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

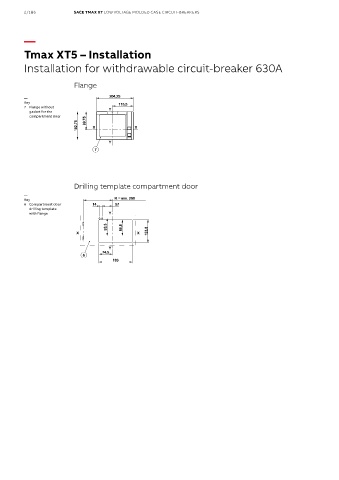

          Tmax XT5 – Installation


          Installation for withdrawable circuit-breaker 630A


                           Flange

          —
          Key
          7  Flange without
           gasket for the
           compartment door













                           Drilling template compartment door
          —
          Key
          6   Compartment door
           drilling template
           with flange
