2/208 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

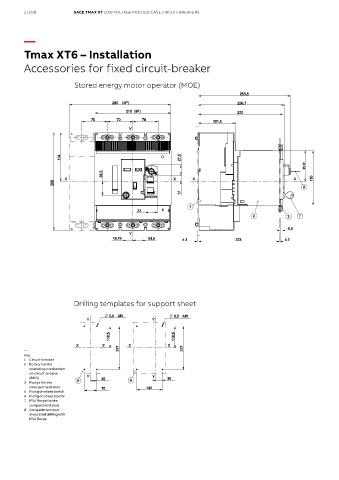

Tmax XT6 – Installation

Accessories for fixed circuit-breaker

Stored energy motor operator (MOE)

Drilling templates for support sheet

—
Key
1 Circuit-breaker
2 Rotary handle
operating mechanism
on circuit-breaker
(RHD)
3 Flange for the
compartment door
5 Fixing on sheet steel III
6 Fixing on sheet steel IV
7 IP54 flange for the
compartment door
8 Compartment door
sheet steel drilling with
IP54 flange
