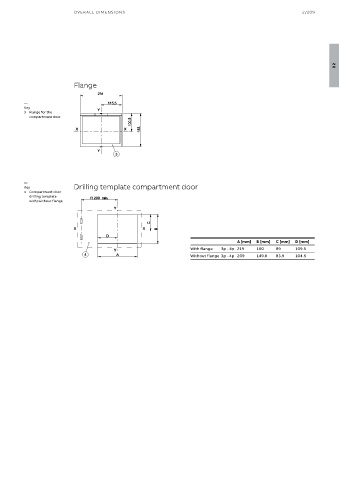

OVER ALL DIMENSIONS 2/209
02
Flange
—
Key
3 Flange for the
compartment door
—
Key Drilling template compartment door
4 Compartment door
drilling template
with/without flange
A [mm] B [mm] C [mm] D [mm]
With flange 3p - 4p 219 160 89 109.5
Without flange 3p - 4p 209 149.8 83.9 104.5
