P. 292

2/212            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

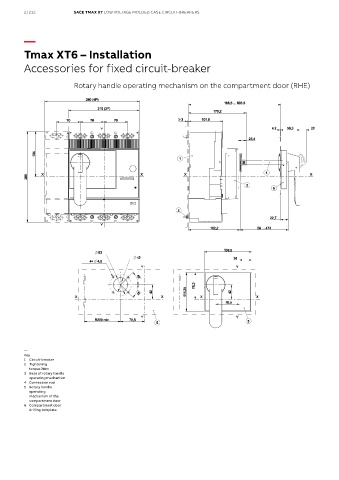

          Tmax XT6 – Installation


          Accessories for fixed circuit-breaker


                           Rotary handle operating mechanism on the compartment door (RHE)
























































          —
          Key
          1  Circuit-breaker
          2  Tightening
           torque 2Nm
          3  Base of rotary handle
           operating mechanism
          4  Connection rod
          5  Rotary handle
           operating
           mechanism of the
           compartment door
          6  Compartment door
           drilling template
