2/216 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

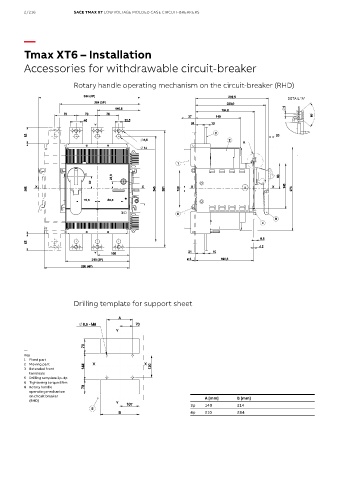

Tmax XT6 – Installation

Accessories for withdrawable circuit-breaker

Rotary handle operating mechanism on the circuit-breaker (RHD)

DETAIL "A"

Drilling template for support sheet

—
Key
1 Fixed part
2 Moving part
3 Extended front
terminals
5 Drilling template 3p-4p
6 Tightening torque 8Nm
8 Rotary handle
operating mechanism
on circuit breaker A [mm] B [mm]
(RHD)
3p 140 214
4p 210 284
