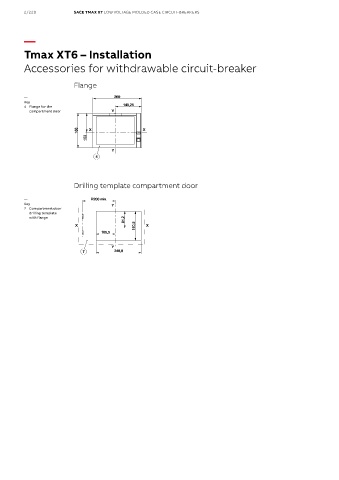

2/220            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

          Tmax XT6 – Installation


          Accessories for withdrawable circuit-breaker


                           Flange

          —
          Key
          4  Flange for the
           compartment door














                           Drilling template compartment door

          —
          Key
          7  Compartment door
           drilling template
           with flange
