OVER ALL DIMENSIONS 2/221

—

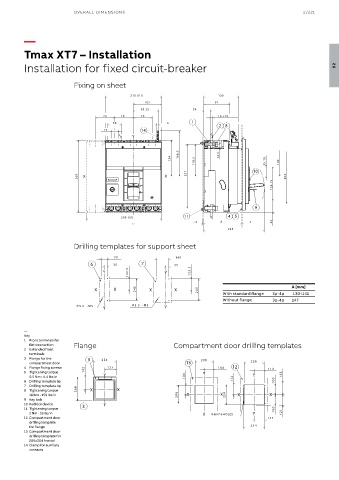

Tmax XT7 – Installation

Installation for fixed circuit-breaker 02

Fixing on sheet

Drilling templates for support sheet

A [mm]
With standard flange 3p-4p 130÷141
Without flange 3p-4p 147

—
Key
1 Front terminals for
flat connection Flange Compartment door drilling templates
2 Extended front
terminals
3 Flange for the
compartment door
4 Flange fixing screws
5 Tightening torque
0.5 Nm - 4.4 lbs in
6 Drilling template 3p
7 Drilling template 4p
8 Tightening torque
18 Nm - 159 lbs in
9 Key lock
10 Padlock device
11 Tightening torque
2 Nm - 18 lbs in N° 6 HOLES
12 Compartment door
drilling template
for flange
13 Compartment door
drilling template for
206x204 frontal
14 Clamp for auxiliary
contacts
