2/218            SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS



          —

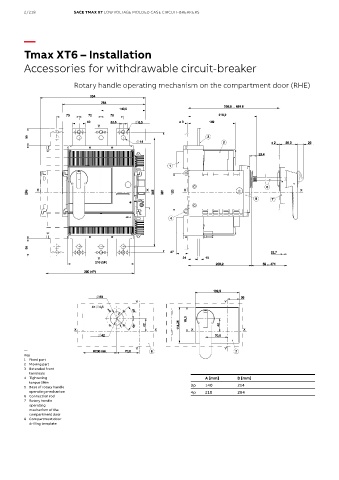

          Tmax XT6 – Installation


          Accessories for withdrawable circuit-breaker


                           Rotary handle operating mechanism on the compartment door (RHE)
























































          —
          Key
          1  Fixed part
          2  Moving part
          3  Extended front
           terminals
          4  Tightening                                                  A [mm]     B [mm]
           torque 2Nm
          5  Base of rotary handle                                  3p   140        214
           operating mechanism                                      4p   210        284
          6  Connection rod
          7  Rotary handle
           operating
           mechanism of the
           compartment door
          8  Compartment door
           drilling template
