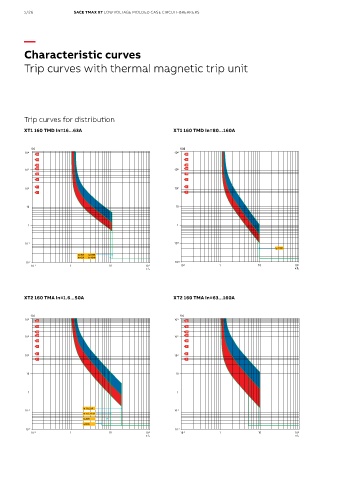

1/26 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS
—
Characteristic curves
Trip curves with thermal magnetic trip unit
Trip curves for distribution
XT1 160 TMD In=16...63A XT1 160 TMD In=80...160A
t [s] t [s]
10 4 10 4
10 3 10 3
10 2 10 2
10 10
1 1
10 -1 10 -1
I 3 =10xIn
In=40A I 3 =450A
In=63A I 3 =10xIn
10 -2 10 -2
10 -1 1 10 10 2 10 -1 1 10 10 2
x I 1 x I 1
XT2 160 TMA In=1.6...50A XT2 160 TMA In=63...160A
t [s] t [s]
10 4 10 4
10 3 10 3
10 2 10 2
10 10
1 1
In=16...25A
10 -1 10 -1
In=1.6...12.5A
In=40A
In=50A
10 -2 10 -2
10 -1 1 10 10 2 10 -1 1 10 10 2
x I 1 x I 1
