INSTALL ATION 1/27
01

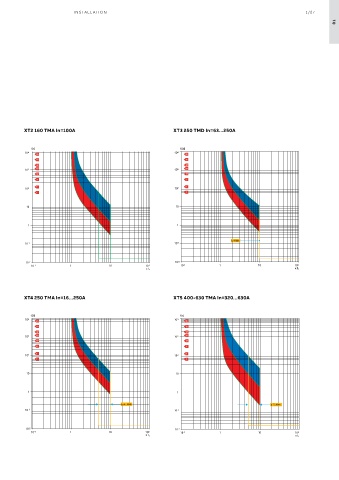

XT2 160 TMA In=100A XT3 250 TMD In=63...250A
t [s] t [s]
10 4 10 4
10 3 10 3
10 2 10 2
10 10
1 1
I 3 =10xIn
10 -1 10 -1
10 -2 10 -2
10 -1 1 10 10 2 10 -1 1 10 10 2
x I 1 x I 1
XT4 250 TMA In=16...250A XT5 400-630 TMA In=320...630A
t [s] t [s]
10 4 10 4
10 3 10 3
10 2 10 2
10 10
1 1
I 3 =5...10xIn I 3 =5...10xIn
10 -1 10 -1
10 -2 10 -2
10 -1 1 10 10 2 10 -1 1 10 10 2
x I 1 x I 1
