1/28 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS
—

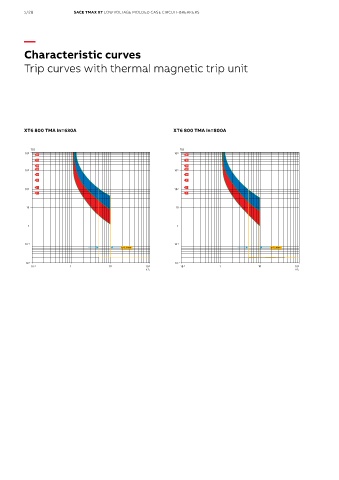

Characteristic curves
Trip curves with thermal magnetic trip unit
XT6 800 TMA In=630A XT6 800 TMA In=800A
t [s] t [s]
10 4 10 4
10 3 10 3
10 2 10 2
10 10
1 1
10 -1 10 -1
I 3 =5...10xIn I 3 =5...10xIn
10 -2 10 -2
10 -1 1 10 10 2 10 -1 1 10 10 2
x I 1 x I 1
