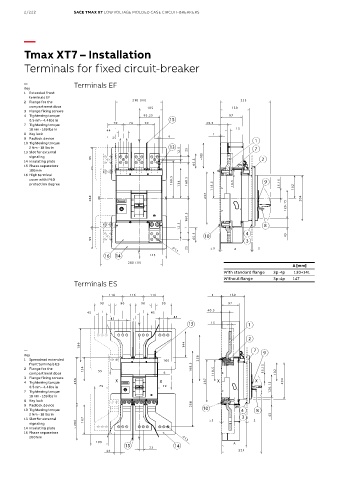

2/222 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

Tmax XT7 – Installation

Terminals for fixed circuit-breaker

— Terminals EF
Key
1 Extended front
terminals EF
2 Flange for the
compartment door
3 Flange fixing screws
4 Tightening torque
0.5 nm - 4.4 lbs in
7 Tightening torque
18 nm - 159 lbs in
8 Key lock
9 Padlock device
10 Tightening torque
2 Nm - 18 lbs in
13 Slot for external
signaling
14 Insulating plate
15 Phase separators
100mm
16 High terminal
cover with IP40
protection degree

A [mm]
With standard flange 3p-4p 130÷141
Without flange 3p-4p 147
Terminals ES

—
Key
1 Spreadead extended
front terminals ES
2 Flange for the
compartment door
3 Flange fixing screws
4 Tightening torque
0.5 nm - 4.4 lbs in
7 Tightening torque
18 nm - 159 lbs in
8 Key lock
9 Padlock device
10 Tightening torque
2 Nm - 18 lbs in
13 Slot for external
signaling
14 Insulating plate
15 Phase separators
200mm
