Page 83 - SACE Tmax XT - Technical Catalogue

OVER ALL DIMENSIONS 2/3

—

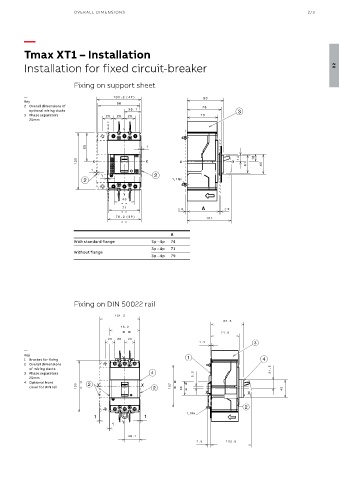

Tmax XT1 – Installation

Installation for fixed circuit-breaker 02

Fixing on support sheet

—
Key
2 Overall dimensions of
optional wiring ducts
3 Phase separators
25mm

A
With standard flange 3p - 4p 74
3p - 4p 71
Without flange
3p - 4p 79

Fixing on DIN 50022 rail

—
Key
1 Bracket for fixing
2 Overall dimensions
of wiring ducts
3 Phase separators
25mm
4 Optional front
cover for DIN rail
