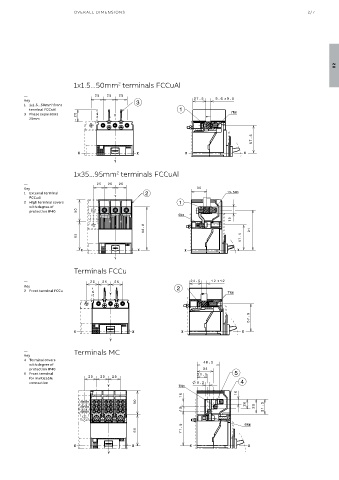

OVER ALL DIMENSIONS 2/7

02

1x1.5...50mm terminals FCCuAl
2
—
Key
1 1x1.5...50mm 2 front
terminal FCCuAl
3 Phase separators
25mm

1x35...95mm terminals FCCuAl
2
—
Key
1 External terminal
FCCuAl
2 High terminal covers
with degree of
protection IP40

Terminals FCCu

—
Key
2 Front terminal FCCu

— Terminals MC
Key
4 Terminal covers
with degree of
protection IP40
5 Front terminal
for multicable
connection
