2/8 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

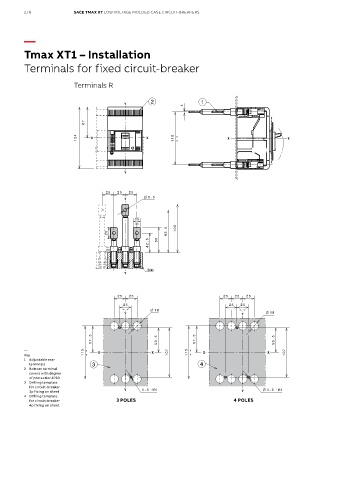

Tmax XT1 – Installation

Terminals for fixed circuit-breaker

Terminals R

—
Key
1 Adjustable rear
terminals
2 Bottom terminal
covers with degree
of protection IP30
3 Drilling template
for circuit-breaker
3p fixing on sheet
4 Drilling template
for circuit-breaker 3 POLES 4 POLES
4p fixing on sheet
