2/4 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

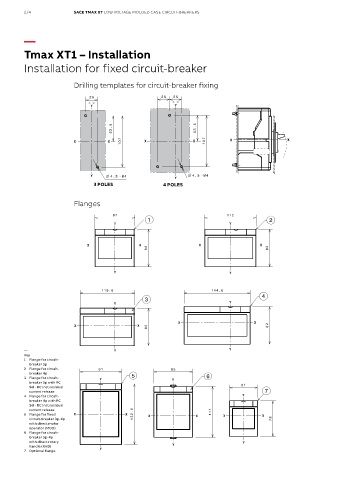

Tmax XT1 – Installation

Installation for fixed circuit-breaker

Drilling templates for circuit-breaker fixing

3 POLES 4 POLES

Flanges

—
Key
1 Flange for circuit-
breaker 3p
2 Flange for circuit-
breaker 4p
3 Flange for circuit-
breaker 3p with RC
Sel - RC Inst residual
current release
4 Flange for circuit-
breaker 4p with RC
Sel - RC Inst residual
current release
5 Flange for fixed
circuit-breaker 3p-4p
with direct motor
operator (MOD)
6 Flange for circuit-
breaker 3p-4p
with direct rotary
handle (RHD)
7 Optional flange
