2/6 SACE TMAX XT LOW VOLTAGE MOLDED CASE CIRCUIT-BREAKERS

—

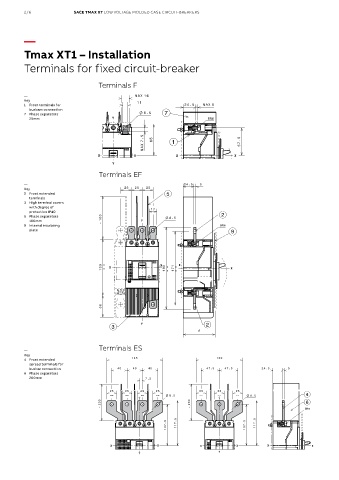

Tmax XT1 – Installation

Terminals for fixed circuit-breaker

Terminals F
—
Key
1 Front terminals for
busbars connection
7 Phase separators
25mm

Terminals EF

—
Key
2 Front extended
terminals
3 High terminal covers
with degree of
protection IP40
5 Phase separators
100mm
9 Internal insulating
plate

Terminals ES
—
Key
4 Front extended
spread terminals for
busbar connection
6 Phase separators
200mm
