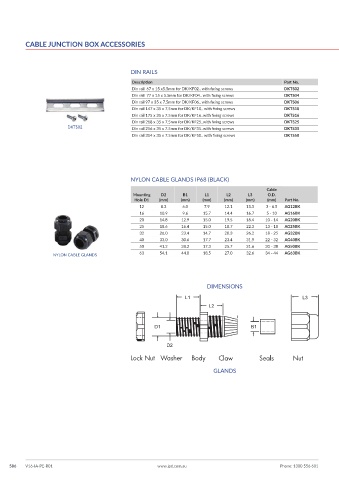

CABLE JUNCTION BOX ACCESSORIES

DIN RAILS
Description Part No.
Din rail 67 x 15 x5.5mm for DK/KF02.. with fixing screws DKTS02
Din rail 77 x 15 x 5.5mm for DK/KF04.. with fixing screws DKTS04
Din rail 97 x 35 x 7.5mm for DK/KF06.. with fixing screws DKTS06
Din rail 147 x 35 x 7.5mm for DK/KF10.. with fixing screws DKTS10
Din rail 175 x 35 x 7.5mm for DK/KF16..with fixing screws DKTS16
Din rail 218 x 35 x 7.5mm for DK/KF25..with fixing screws DKTS25
DKTS02 Din rail 256 x 35 x 7.5mm for DK/KF35..with fixing screws DKTS35
Din rail 314 x 35 x 7.5mm for DK/KF50.. with fixing screws DKTS50

NYLON CABLE GLANDS IP68 (BLACK)

Cable
Mounting D2 B1 L1 L2 L3 O.D.
Hole D1 (mm) (mm) (mm) (mm) (mm) (mm) Part No.
12 8.3 6.0 7.9 12.1 13.3 3 - 6.5 AG12BK
16 10.9 9.6 15.7 14.4 16.7 5 - 10 AG16BK
20 14.8 12.9 15.0 19.5 18.4 10 - 14 AG20BK
25 18.6 16.4 15.0 18.7 22.3 13 - 18 AG25BK
32 26.0 23.4 14.7 20.3 26.2 18 - 25 AG32BK
40 33.0 30.6 17.7 23.4 31.9 22 - 32 AG40BK
50 41.2 38.2 17.3 25.7 31.6 30 - 38 AG50BK
NYLON CABLE GLANDS 63 54.1 44.0 18.5 27.0 32.6 34 - 44 AG63BK

DIMENSIONS
L1 L3
L2

D1 B1

D2

Lock NutWasher Body Claw Seals Nut
GLANDS
