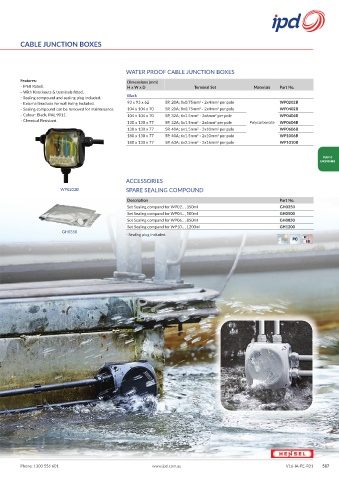

Page 595 - V16 Catalogue Final

CABLE JUNCTION BOXES

WATER PROOF CABLE JUNCTION BOXES
Features: Dimensions (mm)
- IP68 Rated. H x W x D Terminal Set Materials Part No.
- With Knockouts & terminals fitted.
- Sealing compound and sealing plug included. Black
- External brackets for wall fixing included. 93 x 93 x 62 5P, 20A; 8x0.75mm2 - 2x4mm2 per pole WP0202B
- Sealing compound can be removed for maintenance. 104 x 104 x 70 5P, 20A; 8x0.75mm2 - 2x4mm2 per pole WP0402B
- Colour: Black, RAL 9011. 104 x 104 x 70 5P, 32A; 6x1.5mm2 - 2x6mm2 per pole WP0404B
- Chemical Resistant. 130 x 130 x 77 5P, 32A; 8x1.5mm2 - 2x6mm2 per pole Polycarbonate WP0604B
130 x 130 x 77 5P, 40A; 6x1.5mm2 - 2x10mm2 per pole WP0606B
180 x 130 x 77 5P, 40A; 6x1.5mm2 - 2x10mm2 per pole WP1006B
180 x 130 x 77 5P, 63A; 6x2.5mm2 - 2x16mm2 per pole WP1010B

PLASTIC
ENCLOSURES

ACCESSORIES
WP0202B SPARE SEALING COMPOUND
Description Part No.
Set Sealing compund for WP02.. , 350ml GH0350
Set Sealing compund for WP04.. , 500ml GH0500
Set Sealing compund for WP06.. , 850ml GH0850
Set Sealing compund for WP10.. , 1200ml GH1200
GH0350
- Sealing plug included.
