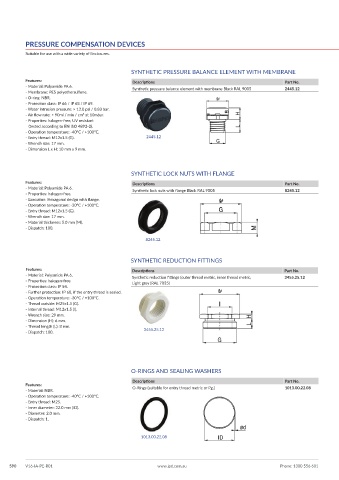

PRESSURE COMPENSATION DEVICES
Suitable for use with a wide variety of Enclosures.

SYNTHETIC PRESSURE BALANCE ELEMENT WITH MEMBRANE
Features: Descriptions Part No.
- Material: Polyamide PA 6. Synthetic pressure balance element with membrane Black RAL 9005 2445.12
- Membrane: PES polyethersulfone.
- O-ring: NBR.
- Protection class: IP 66 / IP 68 / IP 69.
- Water intrusion pressure: > 12.0 psi / 0.83 bar.
- Air flow rate: > 90ml / min / cm² at 10mbar.
- Properties: halogen-free, UV resistant
(tested according to EN ISO 4892-2).
- Operation temperature: -40°C / +100°C.
- Entry thread: M12x1.5 (G). 2445.12
- Wrench size: 17 mm.
- Dimension L x H: 10 mm x 9 mm.

SYNTHETIC LOCK NUTS WITH FLANGE
Features: Descriptions Part No.
- Material: Polyamide PA 6. Synthetic lock nuts with flange Black RAL 9005 8245.12
- Properties: halogen-free.
- Execution: Hexagonal design with flange.
- Operation temperature: -30°C / +100°C.
- Entry thread: M12x1.5 (G).
- Wrench size: 17 mm.
- Material thickness: 5.0 mm (M).
- Dispatch: 100.

8245.12

SYNTHETIC REDUCTION FITTINGS
Features: Descriptions Part No.
- Material: Polyamide PA 6. Synthetic reduction fittings (outer thread metric, inner thread metric, 3455.25.12
- Properties: halogen-free. Light grey (RAL 7035)
- Protection class: IP 54.
- Further protection: IP 68, if the entry thread is sealed.
- Operation temperature: -30°C / +100°C.
- Thread outside: M25x1.5 (G).
- Internal thread: M12x1.5 (I).
- Wrench size: 29 mm.
- Dimension (H): 6 mm.
- Thread length (L): 8 mm.
- Dispatch: 100. 3455.25.12

O-RINGS AND SEALING WASHERS

Descriptions Part No.
Features:
- Material: NBR. O-Rings (suitable for entry thread metric or Pg.) 1013.00.22.08
- Operation temperature: -40°C / +100°C.
- Entry thread: M25.
- Inner diameter: 22.0 mm (ID).
- Diameter: 2.0 mm.
- Dispatch: 1.

1013.00.22.08
