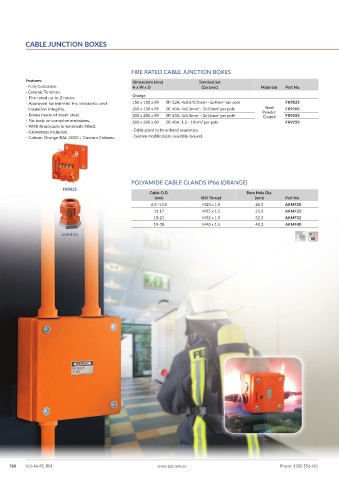

CABLE JUNCTION BOXES

FIRE RATED CABLE JUNCTION BOXES
Features: Dimensions (mm) Terminal Set
- Fully Customize. H x W x D (Ceramic) Materials Part No.
- Ceramic Terminals.
- Fire rated up to 2 hours. Orange
- Approved for intrinsic fire resistance and 150 x 150 x 89 5P, 32A; 4x0.8/0.5mm2 - 2x4mm2 per pole FK9025
insulation integrity. 200 x 150 x 89 5P, 40A; 4x1.5mm2 - 2x10mm2 per pole Steel FK9105
- Boxes made of sheet steel. 200 x 200 x 89 5P, 63A; 4x1.5mm2 - 2x16mm2 per pole Powder FK9255
Coated
- No toxic or corrosive emissions. 200 x 200 x 80 5P, 40A; 1.5 - 10mm² per pole FK9259
- With Knockouts & terminals fitted.
- Grommets included. - Cable gland to be ordered seperately.
- Colour: Orange RAL 2003 / Custom Colours. - Custom modifications available request.

POLYAMIDE CABLE GLANDS IP66 (ORANGE)
FK9025
Cable O.D. Bore Hole Dia.
(mm) ISO Thread (mm) Part No.
6.5 -13.5 M20 x 1.5 20.3 AKMF20
11.17 M25 x 1.5 25.3 AKMF25
15-21 M32 x 1.5 32.3 AKMF32
19-28 M40 x 1.5 40.3 AKMF40

AKMF20
