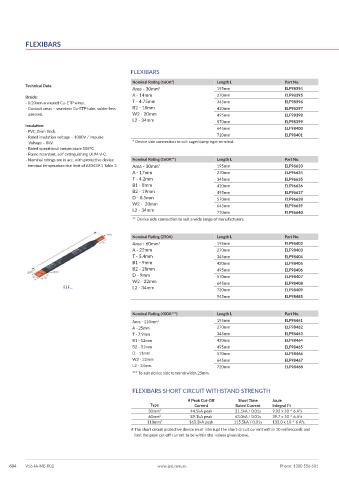

FLEXIBARS

FLEXIBARS
Nominal Rating (160A*) Length L Part No.
Technical Data
Area - 30mm 2 195mm ELF98394
Braids: A - 14mm 270mm ELF98395
- 0.20mm annealed Cu-ETP wires. T - 4.75mm 345mm ELF98396
- Contact areas – seamless Cu-ETP tube, solder-less B2 - 18mm 420mm ELF98397
pressed. W2 - 20mm 495mm ELF98398
L2 - 34mm 570mm ELF98399
Insulation: 645mm ELF98400
- PVC 2mm thick.
- Rated insulation voltage – 1000V / Impulse 720mm ELF98401
Voltage – 8kV. * Device side connection to suit cage/clamp type terminal.
- Rated operational temperature 105°C.
- Flame retardant, self extinguishing UL94 V-0.
- Nominal ratings are in acc. with protective device Nominal Rating (160A**) Length L Part No.
terminal temperature rise limit of AS3439.1 Table 2. Area - 30mm 2 195mm ELF96633
A - 17mm 270mm ELF96634
T - 4.2mm 345mm ELF96635
B1 - 8mm 420mm ELF96636
B2 - 19mm 495mm ELF96637
D - 8.5mm 570mm ELF96638
W2 - 20mm 645mm ELF96639
L2 - 34mm 720mm ELF96640
** Device side connection to suit a wide range of manufacturers.

Nominal Rating (250A) Length L Part No.
Area - 60mm 2 195mm ELF98402
A - 22mm 270mm ELF98403
T - 5.4mm 345mm ELF98404
B1 - 9mm 420mm ELF98405
B2 - 28mm 495mm ELF98406
D - 9mm 570mm ELF98407
W2 - 22mm 645mm ELF98408
ELF... L2 - 34mm 720mm ELF98409
945mm ELF98485

Nominal Rating (400A***) Length L Part No.
Area - 110mm 2 195mm ELF98461
A - 25mm 270mm ELF98462
T - 7.9mm 345mm ELF98463
B1 - 12mm 420mm ELF98464
B2 - 31mm 495mm ELF98465
D - 11mm 570mm ELF98466
W2 - 32mm 645mm ELF98467
L2 - 34mm 720mm ELF98468
*** To suit device side terminal width 25mm.

FLEXIBARS SHORT CIRCUIT WITHSTAND STRENGTH
# Peak Cut-Off Short Time Joule
Type Current Rated Current Integral I²t
30mm² 44.5kA peak 31.5kA / 0.01s 9.92 x 10 ^ 6 A²s
60mm² 89.1kA peak 63.0kA / 0.01s 39.7 x 10 ^ 6 A²s
110mm² 163.3kA peak 115.5kA / 0.01s 133.0 x 10 ^ 6 A²s
# The short circuit protective device must interrupt the short-circuit current within 10 milliseconds and
limit the peak cut-off current to be within the values given above.

604 V16-IA-ME-R02 www.ipd.com.au Phone: 1300 556 601
