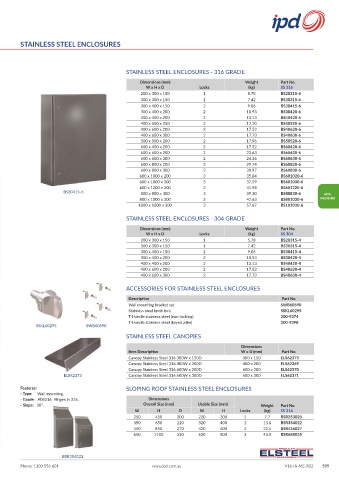

Page 607 - V16 Catalogue Final

STAINLESS STEEL ENCLOSURES

STAINLESS STEEL ENCLOSURES - 316 GRADE
Dimensions (mm) Weight Part No.
W x H x D Locks (kg) SS 316
200 x 300 x 150 1 5.78 BS20315-6
300 x 300 x 150 1 7.42 BS30315-6
300 x 400 x 150 2 9.06 BS30415-6
300 x 400 x 200 2 10.93 BS30420-6
400 x 400 x 200 2 13.13 BS40420-6
400 x 500 x 250 2 17.10 BS40525-6
400 x 600 x 200 2 17.52 BS40620-6
400 x 600 x 300 2 17.73 BS40630-6
500 x 500 x 200 2 17.96 BS50520-6
600 x 400 x 200 2 17.52 BS60420-6
600 x 600 x 200 2 23.63 BS60620-6
600 x 600 x 300 2 24.35 BS60630-6
600 x 800 x 200 3 29.74 BS60820-6
600 x 800 x 300 3 30.97 BS60830-6
600 x 1000 x 200 3 35.84 BS601020-6
600 x 1000 x 300 3 37.59 BS601030-6
600 x 1200 x 200 3 41.94 BS601220-6
BS30415-6 800 x 800 x 300 3 39.30 BS80830-6 METAL
800 x 1000 x 300 3 47.63 BS801030-6 ENCLOSURES
1000 x 1000 x 300 3 57.67 BS101030-6

STAINLESS STEEL ENCLOSURES - 304 GRADE

Dimensions (mm) Weight Part No.
W x H x D Locks (kg) SS 304
200 x 300 x 150 1 5.78 BS20315-4
300 x 300 x 150 1 7.42 BS30315-4
300 x 400 x 150 2 9.06 BS30415-4
300 x 400 x 200 2 10.93 BS30420-4
400 x 400 x 200 2 13.13 BS40420-4
400 x 600 x 200 2 17.52 BS40620-4
400 x 600 x 300 2 17.73 BS40630-4
ACCESSORIES FOR STAINLESS STEEL ENCLOSURES

Description Part No.
Wall mounting bracket set SWB60590
Stainless steel knob lock SSKL60295
T-Handle stainless steel (non-locking) 200-9374
T-Handle stainless steel (keyed alike) 200-9398
SSKL60295 SWB60590
STAINLESS STEEL CANOPIES
Dimensions
Item Description W x D (mm) Part No.
Canopy Stainless Steel 316 300W x 150D 300 x 150 ELS62373
Canopy Stainless Steel 316 400W x 200D 400 x 200 ELS62369
Canopy Stainless Steel 316 600W x 200D 600 x 200 ELS62370
ELS62373 Canopy Stainless Steel 316 600W x 300D 600 x 300 ELS62371
Features: SLOPING ROOF STAINLESS STEEL ENCLOSURES
- Type: Wall mounting.
- Grade: AISI316. Hinges in 316. Dimensions
- Slope: 38°. Overall Size (mm) Usable Size (mm) Weight Part No.
W H D W H Locks (kg) SS 316
250 450 200 220 300 1 7.7 BSR253020
350 650 220 320 400 2 13.6 BSR354022
450 850 270 420 600 2 22.4 BSR456027
650 1100 350 620 800 3 43.0 BSR658035

BSR354022
